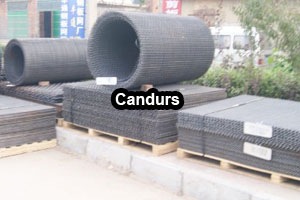

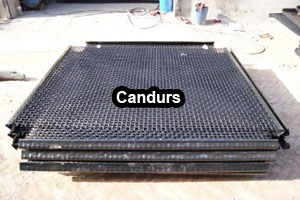

Woven Wire Screens
Woven wire screens as frequency screening media use on vibrating machines in screening and sizing all kinds size of sand, gravel, coal, stone,rock,chipping,metal material and other ore material in mining,quarry,aggregate production industries.
Candurs is a leading manufacturer of high tensile woven wire screens in china,experienced in screen cloth weaving,since1985, full wire screening media was exported Australia,South Africa,UK,USA,Mexico,Thailand,Singapore,Inida,Philippines etc.
Screens Material:
- High carbon steel
- High tensile spring steel
- Stainless steel
Steel Grade | Chemical Composition (%) | ||||||||
---|---|---|---|---|---|---|---|---|---|
China (GB-YG |
USA (AISI) |
C | Mn | Si | S | P | Cr | Cu | Ni |
# 45 | 1045 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 50 | 1050 | 0.47-0.55 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 55 | 1055 | 0.52-0.60 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 60 | 1060 | 0.57-0.65 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
# 70 | 1070 | 0.67-0.75 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |
65 Mn | 1566 | 0.62-0.70 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | ≤ 0.25 | ≤ 0.25 | ≤ 0.30 |

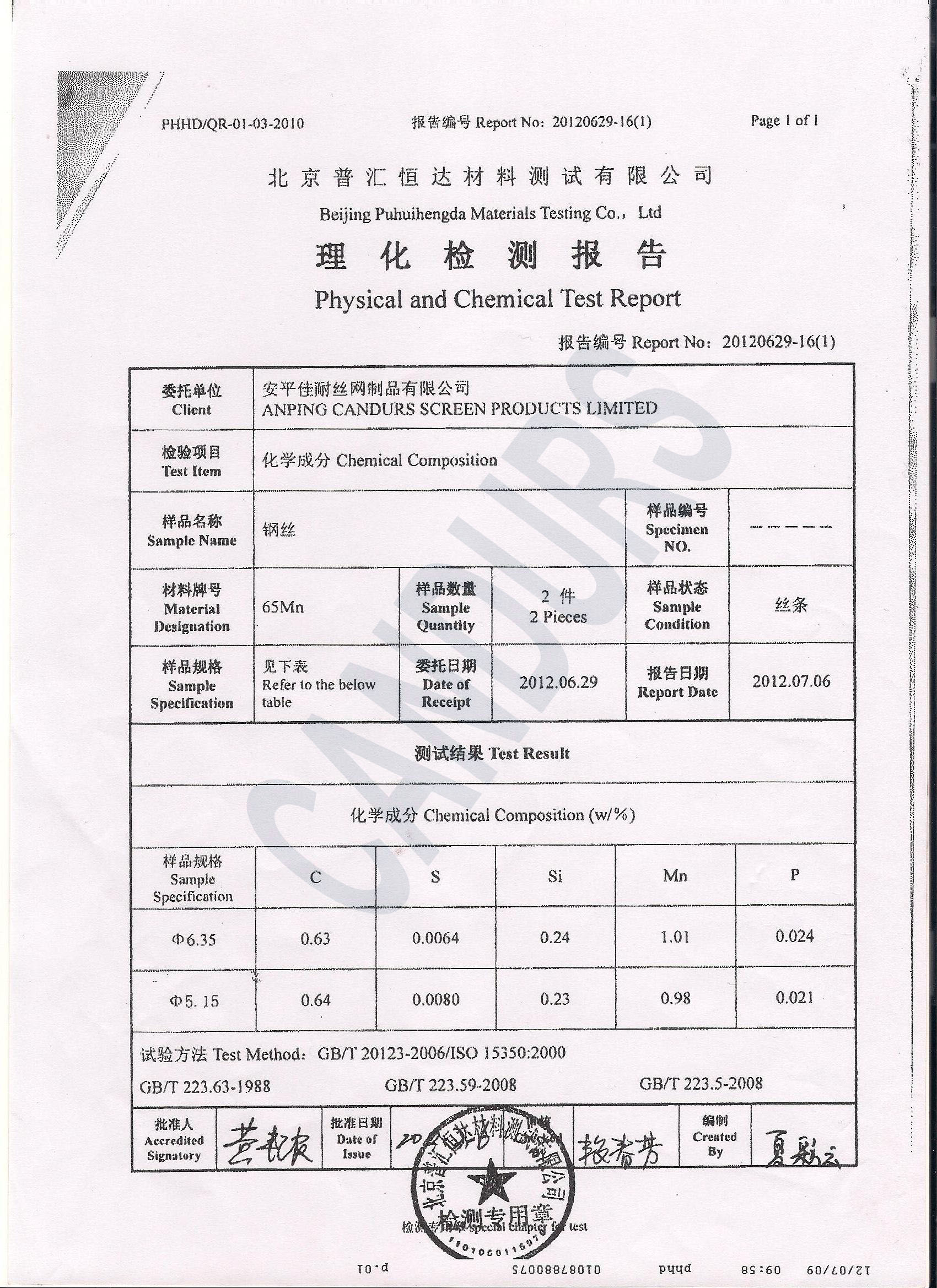

You can ask a third party analysis report when you ordering our woven wire screens
Weaving style:
- Plain weave
- Double crimped
- Intermediate crimped
- Flat top crimped
Mesh type:
- Square
- Rectangular slot
- Long slot
Screens feature :
- Wire:Ø0.71mm - 12.5mm
- Mesh aperture:1mm - 100mm
- Accurately mesh size
- Tolerance : 2%-4%
- Wear and abrasion resistant
- Heavy impact resistant
- Long working life
Further process:
- Black,red color printing avoid woven wire screens rust
- End bent C-V hook,hooks at 30°-180°
Specifications:
Check view standard woven wire screens specification
