Stainless Steel Screens
In Stock
Candurs keep in stock standard 1m,4' width,length 30m fine 304 and 316 grade stainless steel screens mesh,delivery quickly.customized other coarse screen cloth.
Weaving style:

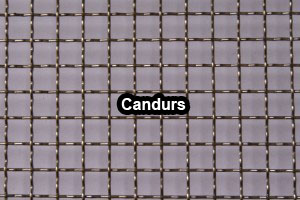

- Plain weave

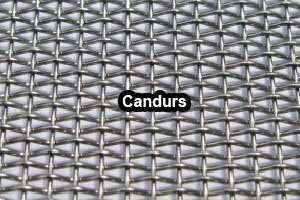

- Double crimped
- Intermediate crimped
Mesh type:
- Square
Screens Feature (in stock):
- Wire:Ø0.5mm - 3.0mm
- Mesh aperture:0.6mm - 30.0mm
- Accurately mesh size
- Stainless steel 304 and 316 grade
- Standard 1m,4' width
- Stanard length 30m
- Tolerance : 2%-4%
- Wear and abrasion resistant
- Long working life
Further process:
- Cutting size,edge bent process
- Edge bent process
- Tolerance : 2%-4%
- Wear and abrasion resistant
- Long working life
In stock list:
Stainless Steel Screens list | |||||||
---|---|---|---|---|---|---|---|
Mesh Per Inch | Wire Diameter | Aperture | Mesh Per Inch | Wire Diameter | Diameter | ||
1 | 4.06 | 21.34 | 5 | 1.63 | 3.45 | ||
1 | 3.25 | 22.15 | 5 | 1.22 | 3.89 | ||
1.5 | 2.64 | 22.76 | 6 | 1.22 | 3.04 | ||
2 | 2.34 | 14.6 | 6 | 0.91 | 3.31 | ||
2 | 2.64 | 10.06 | 7 | 1.22 | 2.47 | ||
2 | 3.2 | 10 | 8 | 1.22 | 1.95 | ||
2 | 4.05 | 9 | 8 | 0.91 | 2.26 | ||
2 | 2.34 | 10.36 | 8 | 0.81 | 2.36 | ||
3 | 1.63 | 11.07 | 8 | 0.7 | 2.5 | ||
3 | 2.0 | 6.5 | 10 | 0.91 | 1.63 | ||
3 | 2.64 | 5.67 | 10 | 0.81 | 2.16 | ||
3 | 2.2 | 6.27 | 12 | 0.71 | 1.41 | ||
4 | 1.63 | 5.84 | 14 | 0.56 | 1.25 | ||
4 | 2.64 | 3.55 | 16 | 0.46 | 1.03 | ||
4 | 2.2 | 4.15 | 18 | 0.46 | 0.95 | ||
Contact us to get know more our stainless steel screens-in stock list |
